Wet gear, soggy snacks, and damaged electronics can ruin any ride. A waterproof bike frame bag protects your essentials from rain, splashes, and mud, ensuring your focus stays on the road, not your belongings. Unlike panniers that add drag, a frame bag hugs your bike’s triangle, offering stability and balance. For commuters, bikepackers, and weekend warriors, this simple addition transforms your bike into an all-weather workhorse.
However, a poorly installed bag can rub against your frame, shift during rides, or let water seep through mounting points. The solution isn’t just buying a quality bag—it’s mastering the waterproof bike frame bag installation process. With the right technique, you’ll achieve a secure, rattle-free fit that lasts for years. Let’s break down every step, tool, and pro tip you need to get it right the first time.
What Exactly Makes a Frame Bag “Waterproof” in the First Place?
A truly waterproof frame bag uses welded seams, waterproof zippers (like YKK AquaGuard), and laminated fabrics such as TPU (thermoplastic polyurethane) or PVC-coated nylon. These materials prevent water from penetrating even under heavy rain, unlike “water-resistant” bags that only handle light drizzle.
But the bag’s fabric isn’t the only factor. The mounting system must also create a seal where the bag contacts the frame. If you install it incorrectly, water can pool behind the bag and seep through the zipper or stitching. That’s why understanding waterproof bike frame bag installation methods is critical—you’re not just attaching a pouch; you’re creating a watertight barrier.
Key Features to Check Before You Start
- Welded seams: No stitching holes where water can enter.
- Roll-top or waterproof zipper closure: Ensures a tight seal.
- Reinforced mounting points: Prevents tearing under load.
- Interior lining: Adds an extra layer of protection.
Why a Cheap “Waterproof” Bag Fails
Budget bags often use taped seams that peel off or standard zippers that leak under pressure. Always test your bag with a hose before a long trip. If you see moisture inside, return it and invest in a reputable brand. A failed waterproof bag defeats the purpose of installation.
Which Tools Do You Need for a Flawless Installation?
You don’t need a workshop full of gear—just a few essentials. For most frame bags, you’ll need a 3mm or 4mm hex wrench, a torque wrench (if you’re particular about frame bolts), and maybe a Phillips screwdriver for bottom bracket mounts. Some bags also use Velcro straps, which require no tools at all.
However, your most important tool is patience. Rushing the alignment can cause uneven strap tension, leading to frame scratches or bag slippage. Always clean and dry your frame before starting. Dirt and moisture trapped under straps can corrode paint over time.
Essential Tool List for Installation
- Hex wrench set (metric sizes)
- Torque wrench (optional but recommended for carbon frames)
- Scissors (to trim excess strap length)
- Rubbing alcohol and microfiber cloth (for surface prep)
- Electrical tape or frame protection film (to prevent scratching)
When Do You Need a Frame Bag Mounting Kit?
Some frame bags require specific bolts or clamps that don’t come included. Check the manufacturer’s spec before buying. If your bike lacks fittings on the top tube or down tube, you’ll need a universal mounting kit with rubber shims and longer bolts. These kits are inexpensive and save you from improvising with zip ties.
How Do You Prepare Your Bike Frame Before Attaching the Bag?
Surface preparation is the unsung hero of waterproof bike frame bag installation. Start by wiping down the entire triangle with isopropyl alcohol to remove oils and wax. This ensures adhesive pads or Velcro strips stick firmly. Next, apply frame protection film (helicopter tape) to any paint that will touch the bag.
This extra layer doesn’t just protect your frame’s finish—it also creates a slightly rubbery surface that grips the bag, reducing micro-movements. Pay special attention to the top tube and down tube contact points. A tiny piece of sand or grit trapped under the strap can cause deep scratches in a single ride.
Step-by-Step: Cleaning and Protecting Your Frame
- Degrease the area with alcohol and a cloth.
- Let it dry fully for 5 minutes.
- Cut helicopter tape into 2-inch strips.
- Apply the tape to the three main contact points: top tube, down tube, and seat tube.
- Rub the tape firmly to remove air bubbles.
Why Frame Protection Film Is Non-Negotiable
Carbon frames are especially vulnerable to compression damage from overtightened straps. A thin polyurethane film absorbs the pressure and prevents structural damage. For aluminum or steel bikes, the film helps maintain resale value by keeping paint pristine.
How to Install a Waterproof Bike Frame Bag: Step-by-Step Guide
Now for the main event. Begin by positioning the empty bag in the bike’s triangle. It should sit centrally, with equal clearance above the crankset and below the top tube. If your bag is too long, it may interfere with water bottle cages or front derailleur cables.

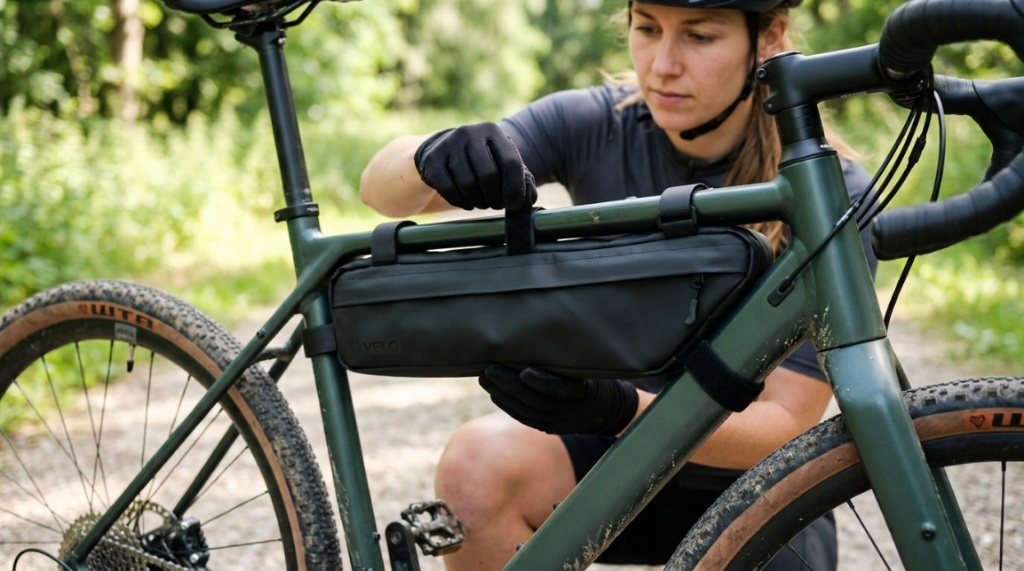

Once positioned, secure the top straps first, then the bottom mounts. This sequence prevents sagging. For Velcro straps, route them around the frame and pull them just snug enough to prevent movement—but not so tight that you compress the frame or distort the bag’s shape. Over-tightening also makes it harder to open the zippers.
Step 1: Attach the Top Straps (Top Tube and Head Tube)

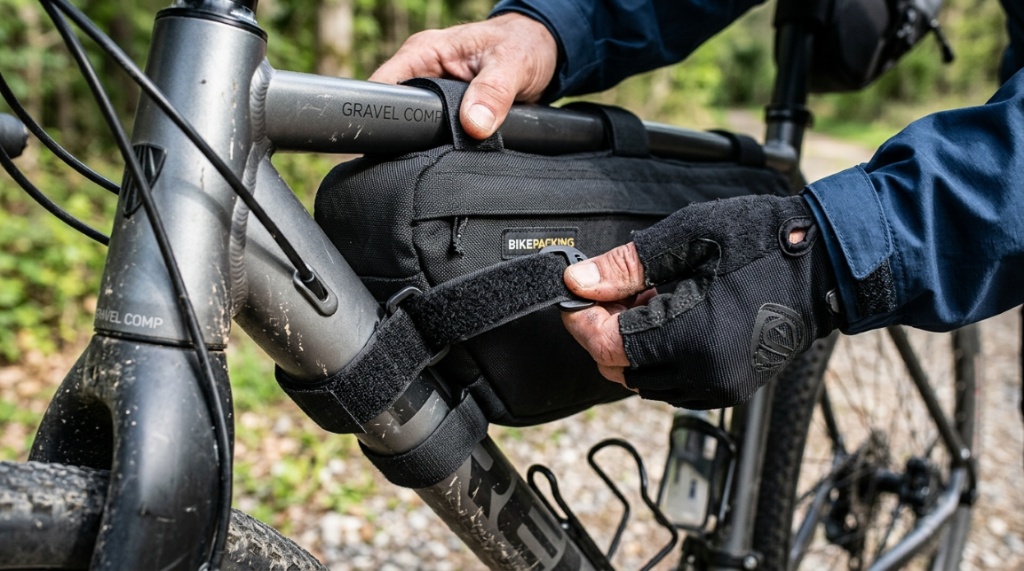

Wrap the Velcro or hook-and-loop straps around the top tube, ensuring they sit flat and aren’t twisted. Thread the strap through the buckle and fold it back onto itself. Pull until firm. Tug gently to test if it slides. If it does, tighten one notch.
Step 2: Secure the Down Tube Straps
These straps handle most of the load, especially on rough terrain. Run them over the down tube, again ensuring they’re flat. Some bags have anti-slip silicone strips on the back—use these to your advantage. The silicone increases friction, so the bag won’t creep forward.
Step 3: Bolt on the Bottom Bracket Mount (If Applicable)
Some full-frame bags use a small bracket that attaches to the bottom bracket bolts. Remove the existing bolt, place the bracket over it, and reinsert. Use a torque wrench set to the manufacturer’s specification (usually 5-8 Nm). A loose bolt here can cause annoying rattling.
Step 4: Final Alignment and Adjustment
Step back and check the bag’s alignment from the front and rear. It should be parallel to the top tube. Adjust each strap incrementally until the bag sits level. If one side is higher, loosen the opposing strap slightly, reposition, and re-tighten.
Why Do Some Frame Bags Shift or Rub During Rides?
Shifting happens due to three main culprits: loose straps, insufficient friction, or frame flex. Even a good bag can move if your frame’s tube shapes are oddly tapered. For example, aero frames with wing-shaped top tubes require specialized mounts or extra shims.
Rubbing, on the other hand, is usually a sign of misalignment. If the bag’s edge touches the frame’s moving parts (like cables or the crankset), it’s positioned incorrectly. A well-installed bag should not touch anything except its mounting points.
Friction Issues That Lead to Slipping
Velcro can become less grippy when wet or dirty. To fix this, add a strip of double-sided adhesive hook-and-loop tape to the back of the bag. This acts as a secondary “sticky layer” without leaving residue. Just ensure your frame has that protective film we mentioned earlier,Now that your bag is secured and waterproof, you’re ready for any adventure. Don’t forget to check your installation after a few hundred miles as straps can stretch. If you’re still on the fence about which bag to buy, or you’re looking for a replacement that fits your budget, a thorough waterproof bike frame bag installation guide will point you toward the best options on the market. Ride dry, ride happy.
The Role of Frame Flex in Bag Movement
When you pedal hard or brake aggressively, your frame flexes naturally. A rigidly mounted bag may pop off straps. To avoid this, don’t crank down on the straps with maximum force. Allow a tiny bit of “give” so the bag flexes with the frame instead of fighting it.
Can You Install a Frame Bag on a Full-Suspension or Small Frame?
Yes, but with adjustments. Full-suspension bikes have limited space due to shock placement. You’ll need a custom or half-frame bag that fits the front triangle. For small frames, a mini or triangular bag often works better than a long rectangular one, as it leaves room for bottle cages and knees.
To measure your frame’s available space, use a piece of cardboard and cut it to the desired shape. Tape it into the triangle and check for clearance while turning the handlebars full lock. This mock-up prevents you from buying a bag that doesn’t fit.
Measuring the “Open Triangle” for a Custom Fit
- Measure the length of the top tube from head tube to seat tube.
- Measure the down tube length from head tube to bottom bracket.
- Measure the seat tube length from top tube to bottom bracket.
- Then, measure the distance between top tube and down tube at the middle—this is your “height.”
When Should You Consider a Custom-Made Frame Bag?
If your frame has bizarre geometry (like a step-through or aero tubing) and off-the-shelf bags don’t fit, custom bag makers can build one in 2-3 weeks. They’ll ask for your mock-up template and preferred colors. This guarantees a perfect fit and, more importantly, a proper waterproof seal.
Is a Frame Bag Better Than a Saddle Bag or Handlebar Bag?
For balance and aerodynamics, yes. A frame bag keeps weight centralized and low, reducing sway. Saddle bags can bounce, while handlebar bags can make steering feel heavy, especially when loaded. Frame bags also free up space for rear racks or front baskets.
However, frame bags have less capacity than panniers. If you’re doing multi-day tours, you’ll likely combine a frame bag with other storage. For daily commuting or short bikepacking trips, a 3-5 liter frame bag is perfect for tools, snacks, keys, and a spare tube.
Comparison: Frame Bag vs. Handlebar Bag
| Feature | Frame Bag | Handlebar Bag |
|---|---|---|
| Weight distribution | Central, low | High, front-loaded |
| Impact on steering | None | Noticeable |
| Waterproofing ease | Easier (less movement) | Harder (flap designs) |
| Access while riding | Difficult | Easy |
| Space utilization | Uses empty triangle | Occupies handlebar space |
Pros and Cons of Saddle Bags for Wet Weather
Saddle bags are quick to install but often dangle near the rear tire. In heavy rain, they can kick up road spray, testing their waterproof zippers. They are also limited in size and can rub against the saddle rails if too heavy. A frame bag avoids all these issues.
How Do You Maintain Your Frame Bag After Installation?
Maintenance is simple: wipe the bag down with a damp cloth and mild soap after dirty rides. Never machine wash it. Periodically check the strap stitching and buckles for wear. If the Velcro starts loose, replace it with new adhesive-backed strips.
Also, inspect your frame’s protected film for signs of peeling. If it wears through, replace it before the next installation. This 5-minute check prevents permanent paint damage. Store the bag with a bit of air inside to prevent mold growth on the interior lining.
How to Dry a Wet Frame Bag Quickly
If the bag’s interior gets wet (from condensation or a leak), open it fully and stuff it with a dry towel. Leave it for an hour to absorb moisture. Then, let it air dry completely—do not use a hair dryer, as heat can delaminate the waterproof coating,Before heading out on a long ride with your newly mounted gear, it’s essential to perform a quick safety check. If you’ve ever dealt with mechanical issues mid-ride—such as trying to troubleshoot why my bike chain keep falling off ensuring your drivetrain is properly adjusted will keep your journey smooth and uninterrupted.
When Should You Re-Treat the Waterproof Coating?
Most TPU bags lose their beading effect after a year of heavy sun or salt exposure. Use nikwax or a silicone spray designed for synthetic fabrics. Apply it to the exterior, let it sit for 10 minutes, then wipe off excess. This restores water repellency without harming the seams.
What Are the Most Common Installation Mistakes to Avoid?
Even expert mechanics make these errors. The biggest mistake is overtightening straps, which can crack carbon frames or strip bolt threads. Another is ignoring cable routing. If a brake cable runs along the top tube, the bag’s strap may compress it, affecting braking performance.
Check your bike’s manual for cable routes. If a cable runs where the strap needs to go, reposition the bag slightly (if the shape allows) or use a gasket to create a channel over the cable. This is a safer alternative to squashing the cable.
Mistake #1: Ignoring Bolt Torque Specifications
Bottom bracket bolts require exact torque. Over-tightening can damage the bearing preload. Under-tightening causes rattling. Use a torque wrench. If you don’t own one, take your bike to a shop for the initial waterproof bike frame bag installation—then you’ll know the correct feel for future adjustments.
Mistake #2: Placing the Bag Too Far Forward or Back
Too far forward can hit your hands when standing up to pedal. Too far back can interfere with the seat tube or rear suspension. Aim for the center of the top tube, but slightly biased toward the front for better weight distribution.
Mistake #3: Using Twisted Straps
A twisted strap doesn’t hold evenly, causing pressure points. Always lay either side of the strap flat against the frame before securing. If your bag uses elastic loops, make sure they’re not crossed over the frame’s sharp edges.
Frequently Asked Questions
How tight should frame bag straps be?
Snug enough that the bag doesn’t slide under heavy pressure, but loose enough to allow a small amount of flex. You should be able to slide a piece of paper between the strap and frame with slight resistance. If you can’t, it’s too tight.
Can I leave my frame bag on the bike in the rain?
Yes, if your bag is truly waterproof (welded seams, IPX4 rating or higher). The bag’s exterior is designed for rain. However, check that the mounting straps aren’t creating puddles of water against your frame’s paint—drip loops help.
Will a frame bag fit a full-suspension bike?
Possibly. You need a bag specifically designed for the front triangle of a full-sus bike, which is smaller and has different angles. Most brands offer “half” frame bags for this purpose. Always measure your specific space before purchasing.
How do I stop my frame bag from swinging?
Swinging is caused by a loose lower mounting point. Add a strap or bolt to the bottom bracket area. If your bag doesn’t have a lower mount, try adding a small hose clamp with rubber padding around the down tube and clip the bag to it.
Can I use a frame bag on a carbon bike without damaging it?
Yes, if you use frame protection film and avoid overtightening. Carbon frames are strong, but their finish is delicate. Ensure the straps are 25mm or wider, as narrow straps concentrate pressure.
Is there a specific way to fold a roll-top frame bag?
Roll it at least three times toward the buckle. Don’t roll it too tight—leave a small air gap to prevent creasing the material. Make sure the clip closes flat against the bag, not perpendicular, to avoid snagging on branches.
Conclusion
Mastering waterproof bike frame bag installation is about respecting the details—preparing the frame, aligning the mounts, and balancing tension. A properly installed bag elevates your cycling experience, giving you confidence in any storm. Remember to always use frame protection, torque bolts to spec, and maintain your straps.
